240 Pin Fiber Module Base Solderless Small Form-factor Pluggable Plus SFP+ Connector W/ Light, 2*6 Dual Port SFP Connector
Product Description
The SFP (Small Form-factor Pluggable) module connector with various data speed rates is a major optical transceiver used for data communication. First introduced in early 2000, SFP connectors were designed to replace the previous gigabit interface converter (GBIC) in fiber optic and Ethernet high-speed networking systems. Based on IEEE 802.3 and SFF-8472 protocol specifications, SFP module connectors can handle up to 4.25Gb/s with greater port density than GBIC, earning them the nickname "mini GBIC."
To meet the demand for faster transmission speeds, the SFP+ (or SFP10) was introduced in 2006 as an extension of the SFP connector. Following IEEE802.3ae, SFF-8431, and SFF-8432 protocol specifications, SFP+ supports data rates up to 10Gb/s. While similar in size to SFP, SFP+ supports Fibre Channel, 10GbE, SONET, OTN, and other communication standards. Both SFP and SFP+ connectors are available in copper and optical variants.
Product Features
| 1. Product Name: | SFP Connector |
| 2. Product Line: | Small Form-factor Pluggable |
| 3. Connector Gender: | Female Centronic Connector |
| 4. Contact Type: | Small Form-factor Pluggable |
| 5. Number of Positions: | 240pin |
| 6. Ports: | 2*6 12 Ports |
| 7. Contact Material: | Phosphor Bronze |
| 8. Finish: | Nickel Silver |
| 9. Insulation Material: | PBT |
| 10. Lightpipe: | with |
Electrical Specifications
| 1. Current Rating: | 1AMP |
| 2. Withstanding Voltage: | 500V for one minute |
| 3. Insulator Resistance: | 500MΩ min (at DC500V) |
| 4. Contact Resistance: | 35MΩ Max |
| 5. Operation Temperature: | -55°C to +105°C |
Applications
- Networking equipment
- Router/Switch
- Data/Communications
- High-end servers
- Networking
- Telecommunications
- Switches
- Telecommunications hardware
- Fibre Channel and Gigabit Ethernet
- Servers

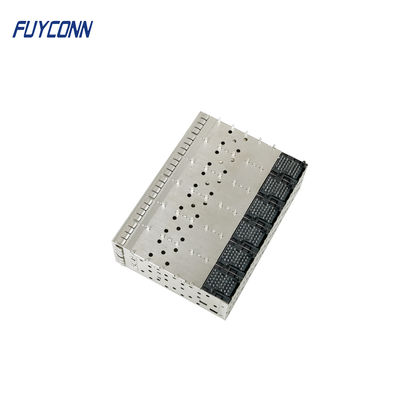

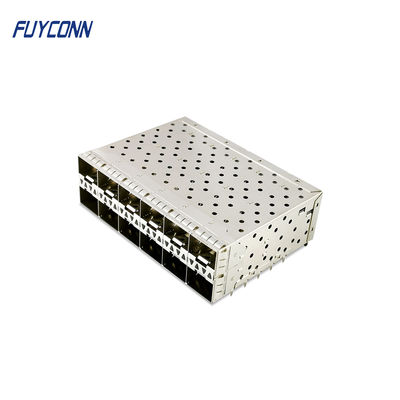

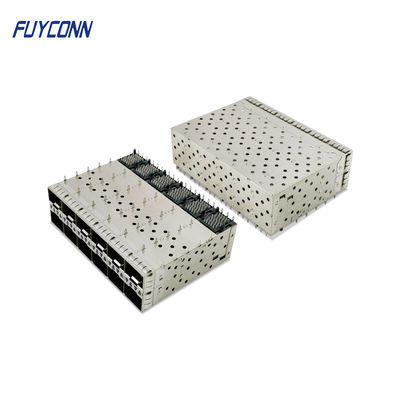

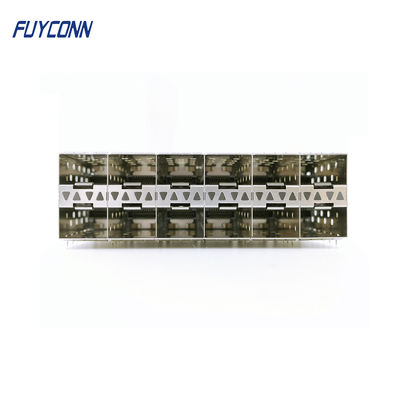

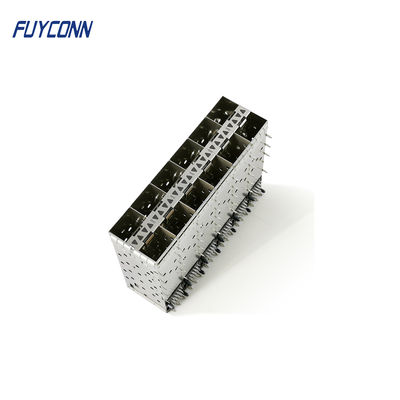

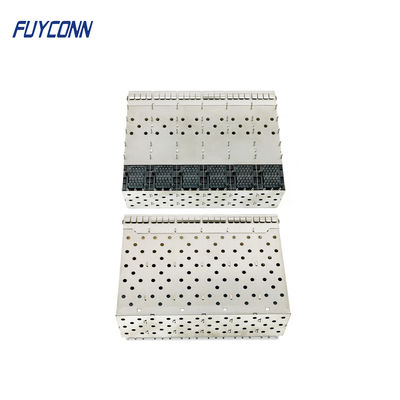

Product Images
Packing & Shipping
Strong Package: - Vacuum Tray
- PE Bag
- Take strong bags/boxes/cartons
- PE Bag + Strips
