2x4 Port Female SFP Connector 160 Pin with Light Pipe

2x4 Port Female SFP Connector 160 Pin with Light Pipe
2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe 2x4 Port Female SFP Connector 160 Pin with Light Pipe

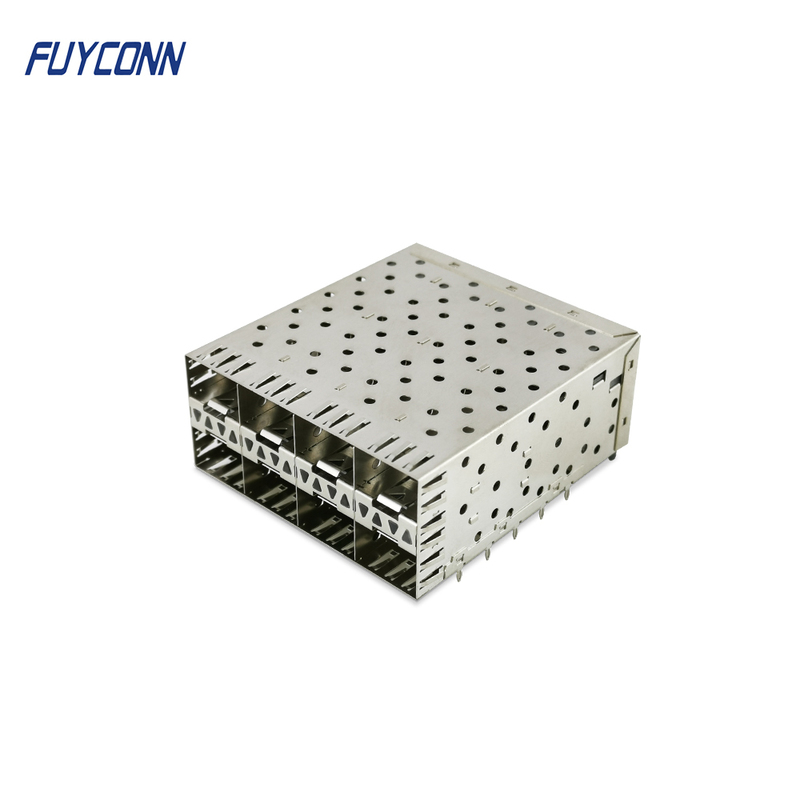

Gambar besar :  2x4 Port Female SFP Connector 160 Pin with Light Pipe

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: FUYCONN
Nomor model: FuYSFP2015-28
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100
Harga: $15
Kontak

2x4 Port Female SFP Connector 160 Pin with Light Pipe

Deskripsi
Jumlah port: 2*4 port ganda Jumlah terminal: 160 pin
Bahan pin kontak: Perunggu fosfor Bahan isolator: PBT
Warna: Nick Silver Tipe kaki: Tekan pin
Lightpipe: dengan pipa ringan Peringkat saat ini: 1AMP
menahan tegangan: 500V selama satu menit Resistansi isolator: 500mΩ mnt (di DC500V)
Kontak Resistance: 35mΩ maks Suhu operasi: -55°C hingga +105°C
Jenis kelamin konektor: Perempuan Jenis kontak: Pluggable Faktor Bentuk Kecil
Menyelesaikan: Perak nikel
Menyoroti:

2x4 port SFP connector

,

160 pin SFP connector

,

SFP connector with light pipe

2-by-4 Multi-Port Female SFP Cage Assembly Connector with Light
Product Overview
The 2x4 Ports Housing Shielded Press-Fit Stackable 160P SFP Connector is a high-performance Small Form-factor Pluggable (SFP) module connector designed for data communication applications. First introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while supporting data rates up to 4.25Gb/s. The SFP+ variant, introduced in 2006, extends this capability to 10Gb/s.
Key Features
Product Name: SFP Connector
Product Line: Small Form-factor Pluggable
Connector Gender: Female Centronic Connector
Number of Positions: 160pin
Ports: 2*4 (8 Ports)
Contact Material: Phosphor Bronze
Finish: Nickel Silver
Insulation Material: PBT
Lightpipe: Included
Electrical Specifications
Current Rating: 1AMP
Withstanding Voltage: 500V for one minute
Insulator Resistance: 500MΩ min (at DC500V)
Contact Resistance: 35MΩ Max
Operation Temperature: -55°C to +105°C
Product Images

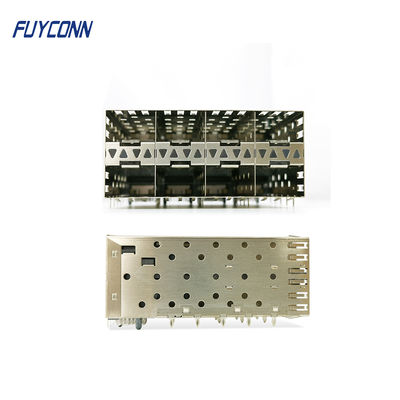

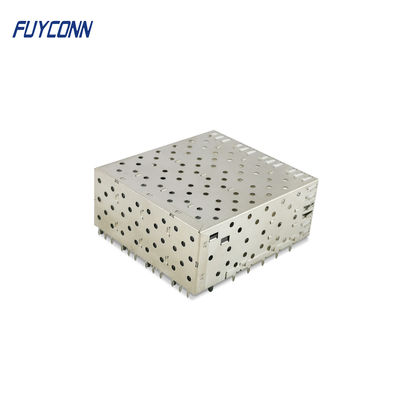

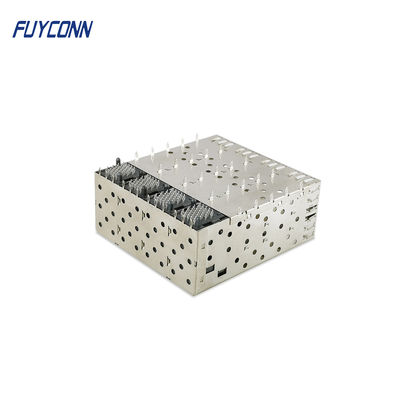

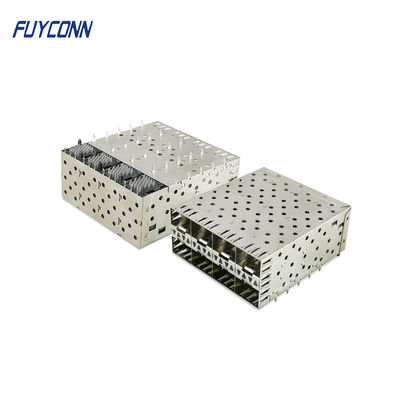

2x4 Port Female SFP Connector 160 Pin with Light Pipe 0
2x4 Port Female SFP Connector 160 Pin with Light Pipe 1
2x4 Port Female SFP Connector 160 Pin with Light Pipe 2
Applications
  • Networking equipment
  • Routers/Switches
  • Data/Communications systems
  • High-end servers
  • Telecommunications hardware
  • Fibre Channel and Gigabit Ethernet systems
Packaging & Shipping
Our products are carefully packaged to ensure safe delivery:
  • Vacuum Tray
  • PE Bag
  • Strong bags/boxes/cartons
  • PE Bag + Strips
2x4 Port Female SFP Connector 160 Pin with Light Pipe 3
2x4 Port Female SFP Connector 160 Pin with Light Pipe 4
About Dongguan Fuyconn Electronics Co., Ltd
Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines. All products are UL- and SGS-certified, RoHS compliant, with a defect rate below 0.5%.
Why Choose Us
  • 16 years Centronic Connector production experience
  • Experienced R&D team
  • Thousands of molds available
  • UL Certified, ROHS compliant
  • Factory-direct pricing
  • Fast sample service (within 2 days)
  • Short lead times (1 week for standard products)
  • No MOQ requirements
  • Custom branding available
  • Full production control from molding to assembly
Certifications
2x4 Port Female SFP Connector 160 Pin with Light Pipe 5
2x4 Port Female SFP Connector 160 Pin with Light Pipe 6
